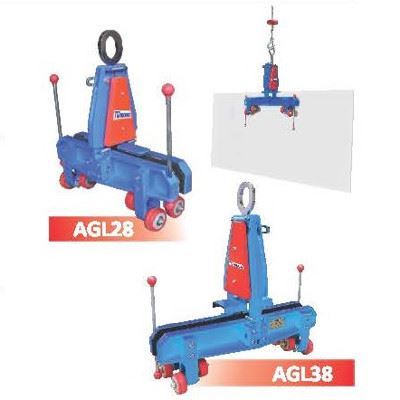

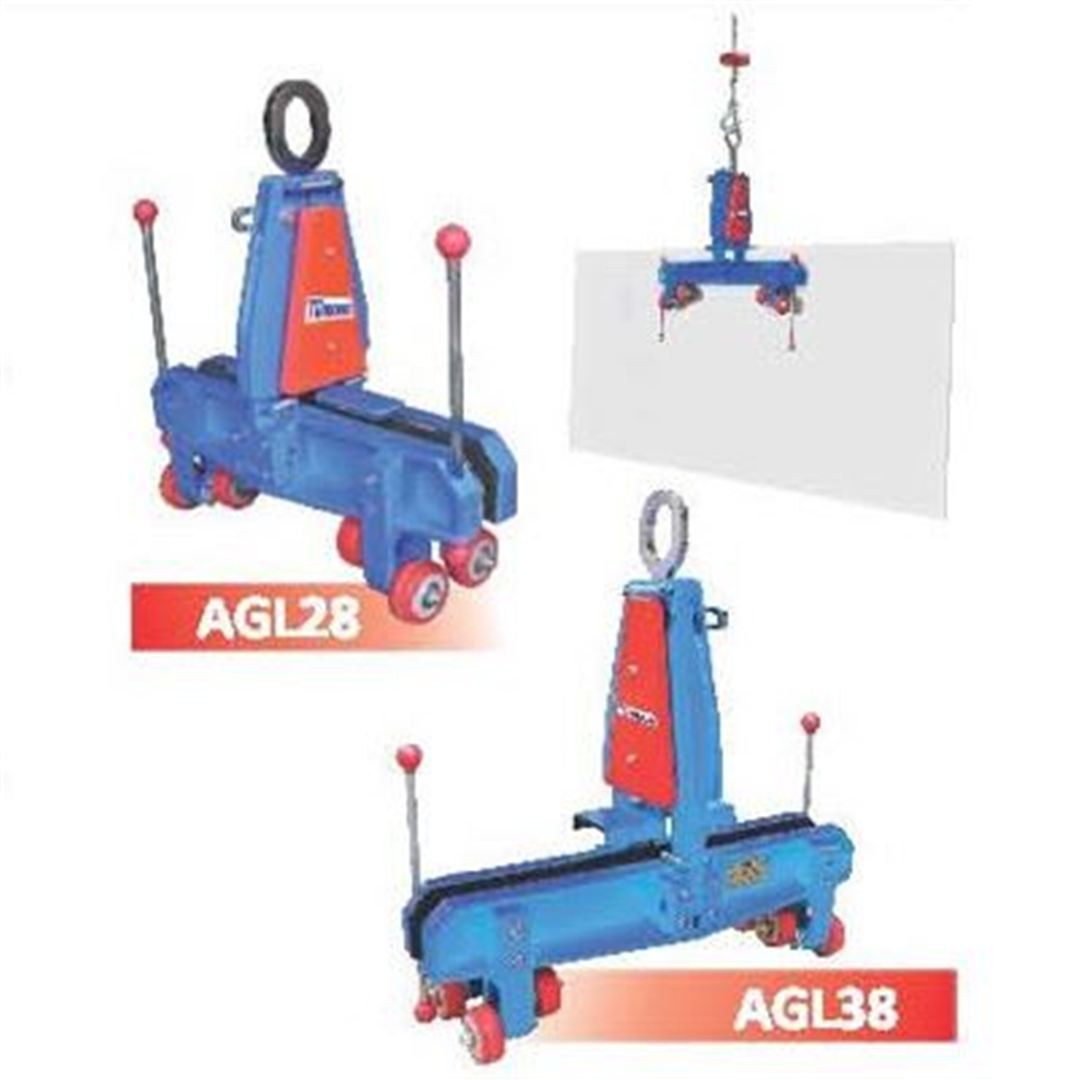

Glass Lifter M1-TUV 38 – White Rubber

Glass Lifter Clamp AGL38
– No electricity or compressed air needed as the pick-up and release operation is fully automatic and mechanically controlled.

– The Glass Lifter is designed for transporting glass sheets safely and securely with its fully automated jaws clamping on both sides with minimal labor requirement. The four lower wheels of the Lifter make easy to transport this lifter on the ground.

– The four upper wheels of the Lifter are designed to guide the glass sheet to the rubber clamp. An additional layer of vulcanized rubber on the clamp allows for added grip as well as extra protection for the glass being handled. The light and compact design makes it easy to transport and store.

Features:

– Length: 738mm

– Width: 252mm

– Height: 732mm

– Grip range: 10 – 38mm

– Net weight: 33kg

– Working Load Limit: 800kg
